Understanding Inverter Clipping: A Guide for Solar Enthusiasts

What is Inverter Clipping?

Inverter clipping is a term frequently encountered by those delving into the intricacies of solar energy systems. This phenomenon, while often misunderstood, plays a crucial role in the performance and efficiency of solar power installations. In this blog post, we'll break down what inverter clipping is, why it happens, and its implications for your solar energy system.

‍

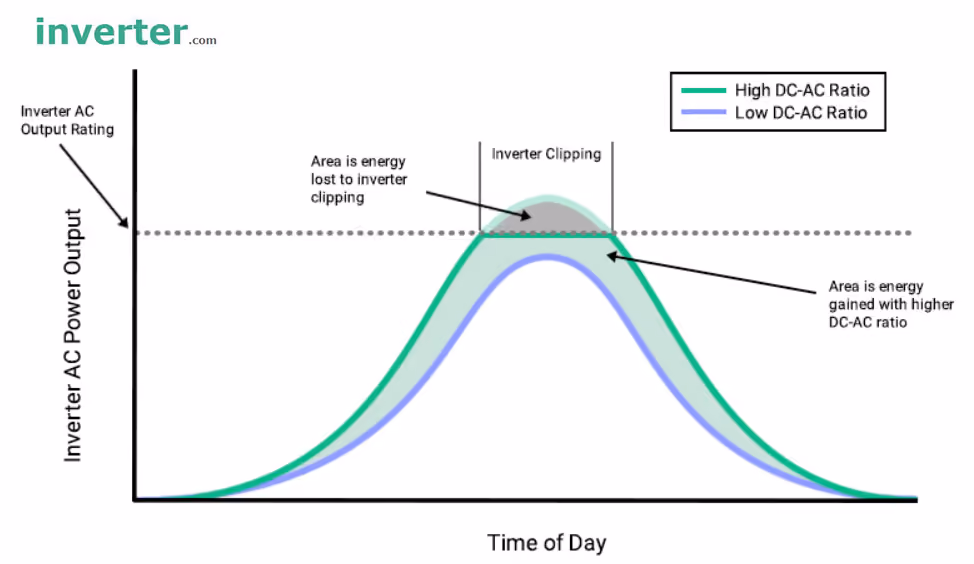

Inverter clipping occurs when a solar inverter reaches its maximum power output capacity and cannot convert any additional DC power generated by the solar panels into AC power. This typically happens on very sunny days when solar panels produce more power than the inverter can handle.

‍

Why Does Inverter Clipping Happen?

Solar inverters are designed with a specific maximum power rating, measured in watts. This rating dictates the highest amount of power the inverter can convert from DC to AC. When the power produced by the solar panels exceeds this limit, the inverter "clips" the excess power, effectively capping the output to match its maximum capacity.

‍

This is a deliberate design choice for several reasons:

1. Cost Efficiency: Inverters with higher power ratings are significantly more expensive. Most residential and commercial solar installations opt for an inverter that matches their typical energy needs rather than peak potential output.
2. Optimal Sizing: Solar panels rarely operate at their maximum capacity due to varying sunlight conditions throughout the day and year. Sizing an     inverter to handle these rare peak outputs would be inefficient and costly.

‍

When Does Inverter Clipping Occur?

Inverter clipping is most likely to happen under conditions of optimal sunlight—typically around midday on clear, sunny days. During these times, the solar panels generate power at or near their rated capacity, potentially exceeding the inverter's maximum power rating.

‍

Why are my solar panels not reaching their rated capacity?

Solar panels generate DC electricity, which inverters convert to AC electricity your home can use. Solar panel DC power rating is factory measured at ideal standard test conditions(STC) of 1000 Watts/m2 light intensity striking perpendicular to the panel surface, with solar cells at 25 deg C. Real world installations will seldom replicate STC conditions, making rated solar panel DC power events uncommon and short lived.

‍

Is Inverter Clipping a Bad Thing?

While inverter clipping might seem undesirable, it is not necessarily a negative occurrence. Here’s why:

1. Cost-Benefit Balance: The additional cost of purchasing a higher-rated inverter often outweighs the benefits gained from avoiding occasional clipping.
2. System Design: Solar energy systems are designed to balance performance and cost. A certain amount of clipping is typically factored into the design to ensure the system remains economically viable.

‍

Conclusion

Inverter clipping is a natural and expected part of solar energy system operation. Understanding why it happens and how to manage it can help you make informed decisions about your solar power installation. By balancing inverter capacity with system cost and performance, you can optimize your solar energy production and get the most out of your investment.

‍

By grasping the concept of inverter clipping, you can better appreciate the design and functionality of your solar energy system, ensuring it meets your energy needs efficiently and effectively.

‍
